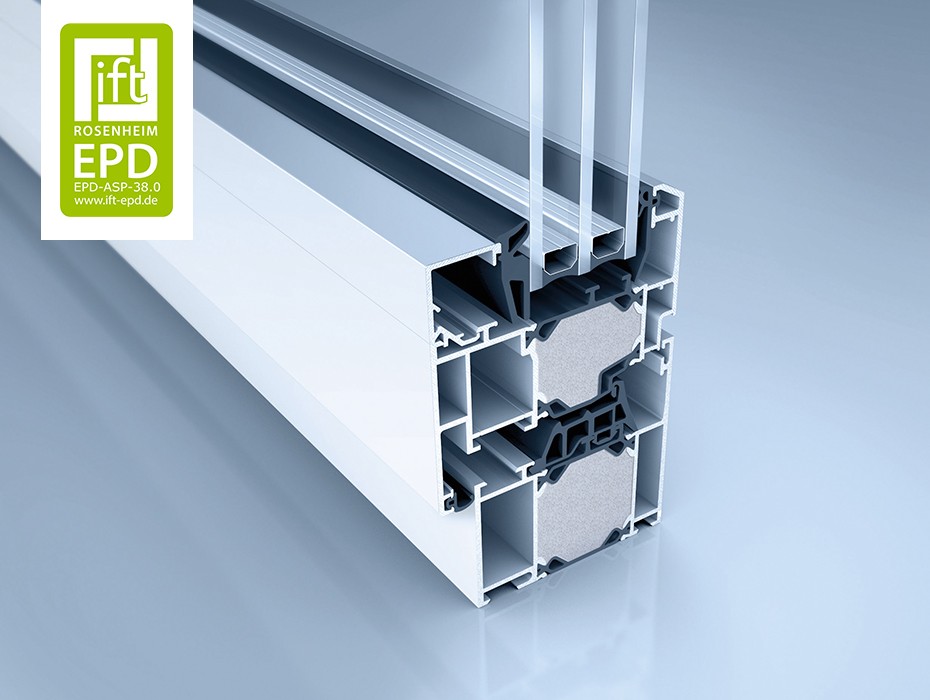

Window system heroal W 72 CL

heroal W 72 CL

Aluminium window system with chamfered outer contours

Based on the tried and tested window system heroal W 72, heroal W 72 RL with its chamfered profiles on the outside is perfectly suited for renovations and the refurbishment of old buildings. The classic, offset contour creates a visual highlight for your home.

  • Chamfered Classic-Line contours
  • Suitable for old buildings and renovation
  • Thermal insulation Uf= 1.3
  • Burglary resistance class RC 3

System request >

    Product Details

  • Prospects

  • Dimensions & drawings

    Visible profile width [mm]

    Leaf profile
    33 - 43
    Sash/frame combination
    100

    System properties

    Glass filling strength [mm]
    58
    Max. leaf weight [kg]
    300
    Max. leaf heights [mm]
    2.800
    Max. leaf widths [mm]
    1.600

    Sectional Drawings

  • Performance characteristics
    RC 3 Resistance to burglary
    2 Continuous function
    9A Resistance to driving rain
    5 Impact resistance
    > 0,84* Heat insulation (Uw in W/m2K) / Profile width [mm]
    1,3/120 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    4 Mechanical resistance
    1 Operating forces
    4 Air permeability
    1 Load-bearing capacity of safety equipment
    1-5 Soundproofing class
    C5/B5 Wind resistance
