Window system heroal W 77 HI
heroal W 77 window system in burglary protection class RC 4
Use of heroal W 77 HI with heroal WF EM hardware system

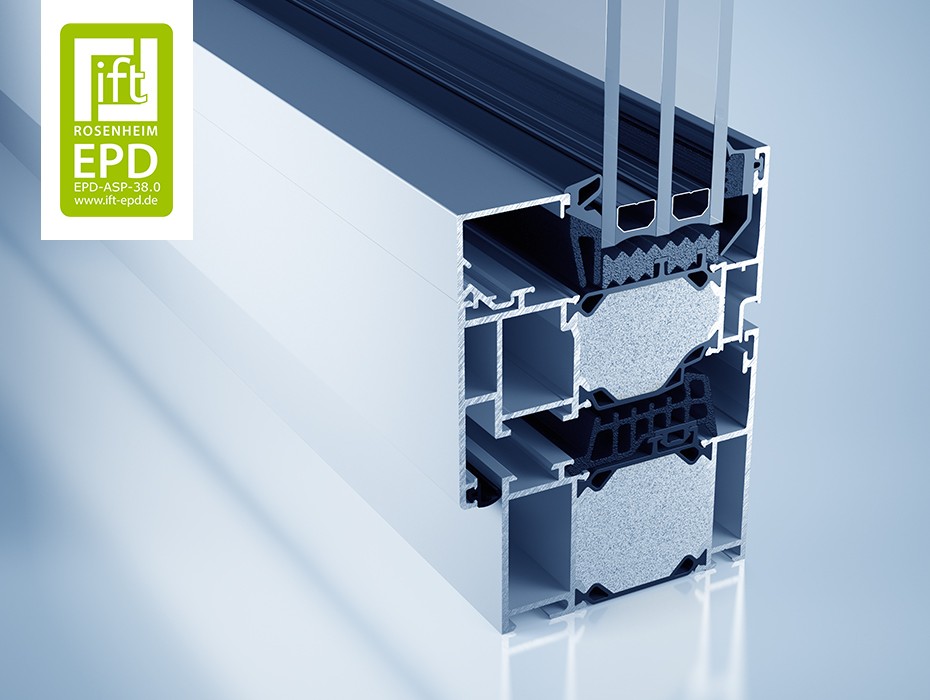

heroal W 77 HI

Aluminium window system suited for passive houses

The window system heroal W 77 HI offers you small face widths, and at the same time, thanks to its modern design, achieves thermal insulation values required for passive houses. That means you benefit from lower heating and energy costs and, in some countries, become eligible for attractive state subsidies. Compared to similar aluminium windows suited for passive houses, the heroal W 77 HI stands out for its extremely small face widths. They provide for an aesthetically appealing look and more transparency, and improve the overall impression for your home. Aluminium windows of the heroal W 77 HI range also offer you certified burglary resistance; their resistance class RC3 exceeds the recommendations of the police. For a safe and comfortable home.

  • Suitable for passive houses
  • Filigree design
  • Burglary resistance class RC 3

Video: heroal W 77 > System request >

    Product Details

  • Prospects

  • Dimensions & drawings

    Visible profile width [mm]

    Leaf profile
    33 - 67
    Sash/frame combination
    90

    System properties

    Glass filling strength [mm]
    66
    Max. leaf weight [kg]
    300
    Max. leaf heights [mm]
    2.800
    Max. leaf widths [mm]
    1.600

    Sectional Drawings

  • Performance characteristics
    RC 3 Resistance to burglary
    3 Continuous function
    9A Resistance to driving rain
    5 Impact resistance
    > 0,72 Heat insulation (Uw in W/m2K) / Profile width [mm]
    0,95/120 Thermal insulation [Uf in W/m2K] / Profile width [mm]
    4 Mechanical resistance
    1 Operating forces
    4 Air permeability
    1 Load-bearing capacity of safety equipment
    1-5 Soundproofing class
    C5/B5 Wind resistance

    * Uw value in accordance with DIN EN ISO 10077-1; calculated using an element size of 1,230 x 1,480 mm; standard visible profile width

    !) Application-specific special approvals for oversized elements from heroal
